C5. Namespaces

---

Learning Outcomes

• Explain the purpose of namespaces in C# and their role in Unity projects. Before class, review how namespaces organize scripts and prevent naming conflicts, using the provided examples as a reference.
• Recognize core UnityEngine classes and lifecycle methods. As preparation, study the roles of MonoBehaviour, GameObject, and Component, and note how lifecycle methods like Start(), Update(), Awake(), and FixedUpdate() are applied in scripts.
• Identify audio-related classes within the UnityEngine.Audio namespace. Ahead of the session, explore AudioSource and AudioClip to understand their purpose in Unity’s audio system.
• Explore UnityEngine.UI components and hierarchy. For your pre-work, create a Canvas with Text and Button elements in Unity and examine their properties in the Inspector.
• Describe scene management capabilities in Unity. Prior to class, review how SceneManager methods such as LoadScene(), UnloadSceneAsync(), and sceneLoaded control scene transitions.
• Summarize the purpose of XR-related namespaces in Unity. In preparation, study the role of UnityEngine.XR, XR.Interaction.Toolkit, and ARFoundation in XR and AR workflows.

---

Namespaces

Namespaces are a mechanism for organizing code into logical groups, much like folders in an operating system. They serve to encapsulate related type definitions (such as classes, structs, interfaces, etc.) into distinct groups that work together. In Unity XR development—especially for engineering applications such as training simulations, digital twins, or system diagnostics—projects quickly grow in complexity. Namespaces help manage that complexity by keeping your code organized, modular, and conflict-free. Namespaces are not just a programming convention—they reflect the same mindset engineers apply when designing real systems: modular architecture, clear boundaries, and reuse of standard components.

Why Namespaces Matter?

• Organization and Readability In XR projects, your Unity application may include multiple systems such as device tracking, UI panels, scene management, object interaction, and feedback mechanisms. Namespaces help group these elements into logical units. Just as engineers organize CAD assemblies or modular control systems, namespaces keep your software structured, modular, and easier to navigate.

• Avoiding Naming Conflicts Common class names like Controller, Manager, or Sensor can exist in multiple areas of an XR project—for UI handling, input processing, scene control, or object interaction. Without namespaces, these duplicate names lead to conflicts. Namespaces isolate them in their respective contexts, reducing errors and improving code clarity.

• Reusability and Encapsulation Namespaces enable you to develop reusable components, such as a hand interaction system, UI panels, or scene transition logic, and apply them across different scenes or even projects. This encapsulation allows XR projects to be built from well-defined modules, minimizing redundancy and improving maintainability.

• Team Collaboration In team-based XR development, namespaces provide clear boundaries between systems. This helps avoid accidental overlap between features, simplifies onboarding for new developers, and supports parallel workstreams. Just like standardized documentation and naming conventions in engineering, namespaces promote clarity and coordination in collaborative codebases.

UnityEngine Namespaces

Namespaces in Unity serve as organizational units that group related classes, functions, and types, helping you structure your code in a modular and manageable way. They allow you to reference specific functionality, such as rendering, physics, or input, without conflicts between similarly named classes. The table below summarizes the most important namespaces used in Unity scripting along with brief definitions:

• UnityEngine: Core Unity engine classes including MonoBehaviour, GameObject, Transform, and other fundamental types.
• UnityEngine.Audio: Provides classes for audio playback and control, including AudioSource and AudioMixer.
• UnityEngine.UI: Provides access to Unity’s UI elements, such as Buttons, Text, and other UI components.
• UnityEngine.SceneManagement: Offers classes and methods for loading, unloading, and managing scenes.
• UnityEngine.EventSystems: Contains interfaces and classes for handling UI events and input (e.g., pointer events).
• UnityEngine.InputSystem: The modern, flexible input system that supports multiple devices and action mapping.
• UnityEngine.XR: Provides basic classes for XR device tracking and input for VR/AR projects. It includes UnityEngine.XR.Interaction.Toolkit, which offers advanced components and tools for handling interactions in XR applications using the XR Interaction Toolkit.

---

UnityEngine

The UnityEngine namespace is the cornerstone of Unity development. It provides the essential classes and methods that power the Unity engine, enabling you to create, control, and manipulate game objects and behaviors. This namespace contains MonoBehaviour, GameObject, and Component methods.

MonoBehaviour Methods

These methods form the backbone of scripting in Unity. They allow you to control the lifecycle of your scripts and react to events during gameplay. Examples of MonoBehaviour methods include:

• Start(): Called before the first frame update—ideal for initialization (e.g., robot parameters or sensor states).
• Update(): Called once per frame—used for frame-based logic (e.g., quadruped or robot arm positioning).
• Awake(): Called when the script instance is being loaded—often used for registering components.
• FixedUpdate(): Called on a fixed time interval—perfect for physics calculations (e.g., forklifts or drone movement.).
• OnCollisionEnter(): Called when this Collider/Rigidbody has begun touching another Rigidbody/Collider—useful for identifying when a box hits a rack or a robot encounters an obstacle.

MonoBehaviour has been extensively discussed in C4.

GameObject Methods

GameObject is the primary building block of a Unity scene. It represents objects in your game world and can have multiple components attached to it. From instantiating and destroying objects to adding components and sending messages, these methods form the backbone of game object management in Unity. These are generally classified into GameObject methods and Component methods:

• Instantiate(): Creates a new instance of a GameObject or prefab at runtime. For example, Instantiate(enginePart, new Vector3(2, 0, 0), Quaternion.identity); spawns a new engine part at the given position.

• Destroy(): Removes a GameObject or component from the scene, either immediately or after a specified delay. For example, Destroy(defectivePart, 2f); deletes the object after 2 seconds.

• Find(): Searches the current scene for a GameObject by name and returns the first match found. For example, GameObject hmi = GameObject.Find("HMI_Display"); locates a control panel named HMI_Display.

• AddComponent<T>(): Dynamically adds a component of type T to the GameObject. For example, gameObject.AddComponent<Rigidbody>(); adds physics behavior to the object at runtime.

• SetActive(): Activates or deactivates a GameObject, controlling whether it is visible and interactive in the scene. For example, uiPanel.SetActive(false); hides a UI element.

• CompareTag(): Checks whether the GameObject’s tag matches a specified string for condition-based logic. For example, if (gameObject.CompareTag("Tool")) filters actions to tool-related objects.

Example: Let’s use GameObject methods to simulate interaction with tools on the drawer next to the CNC machine in XFactory’s manufacturing station. Pressing the “New Part” button on the phone spawns a randomly selected prefab (either a raw material or finished part), attaches physics, and updates the UI with its tag. Pressing “Pass” or “Fail” removes the spawned part. Pressing the on/off button on the digital caliper toggles its display on or off. Create an empty GameObject named DrawerManager under the drawer GameObject and attached the following InspectionDrawer.cs script to it.

using UnityEngine;
using TMPro;

public class InspectionDrawer : MonoBehaviour
{
    public GameObject rawMaterialPrefab;  // Prefab for raw material
    public GameObject finishedPartPrefab; // Prefab for finished part
    public TextMeshProUGUI partTypeText;  // UI text to show part tag

    private GameObject currentPart;

    // Called when "New Part" button is pressed on the phone
    public void SpawnNewPart()
    {
        // Randomly pick a prefab to spawn
        GameObject prefabToSpawn =
            Random.value > 0.5f ? rawMaterialPrefab : finishedPartPrefab;

        // Instantiate the part at a fixed position with random Y rotation
        currentPart = Instantiate(
            prefabToSpawn,
            new Vector3(-13.38f, 1.12f, -13.86f),
            Quaternion.Euler(0, Random.Range(0, 360), 0)
        );

        // Add Rigidbody for physics
        currentPart.AddComponent<Rigidbody>();

        // Use tag to update the part type text
        if (currentPart.CompareTag("Raw Material"))
        {
            partTypeText.text =
                "This is a Raw Material";
        }
        else if (currentPart.CompareTag("Finished Part"))
        {
            partTypeText.text =
                "This is a Finished Part";
        }
    }

    // Called when "Pass" or "Fail" button is pressed
    public void RemoveCurrentPart()
    {
        if (currentPart != null)
        {
            // Remove the part from the drawer
            Destroy(currentPart);
        }
    }

    // Called when caliper on/off button is pressed
    public void ToggleCaliperDisplay()
    {
        // Find the display under Caliper_Digital_Bottom
        GameObject display = GameObject.Find(
            "Caliper_Digital_Bottom/Display"
        );

        // Toggle its active state
        if (display != null)
        {
            display.SetActive(!display.activeSelf);
        }
    }
}

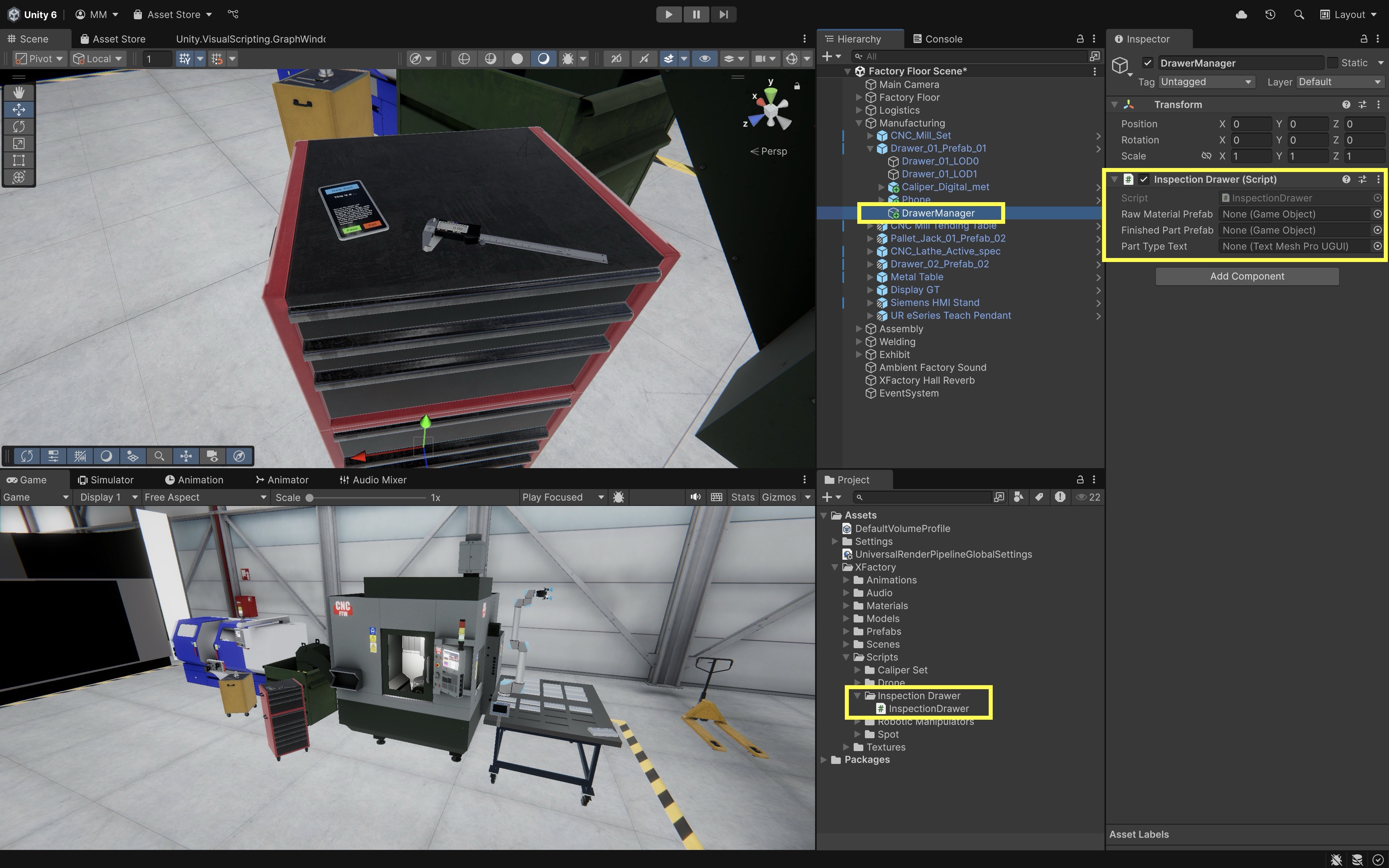

1. Create and Attach the Script:
   • In the Hierarchy, right-click and select Create Empty. Rename it to DrawerManager.
   • In the Inspector, click Add Component and attach the InspectionDrawer.cs script.

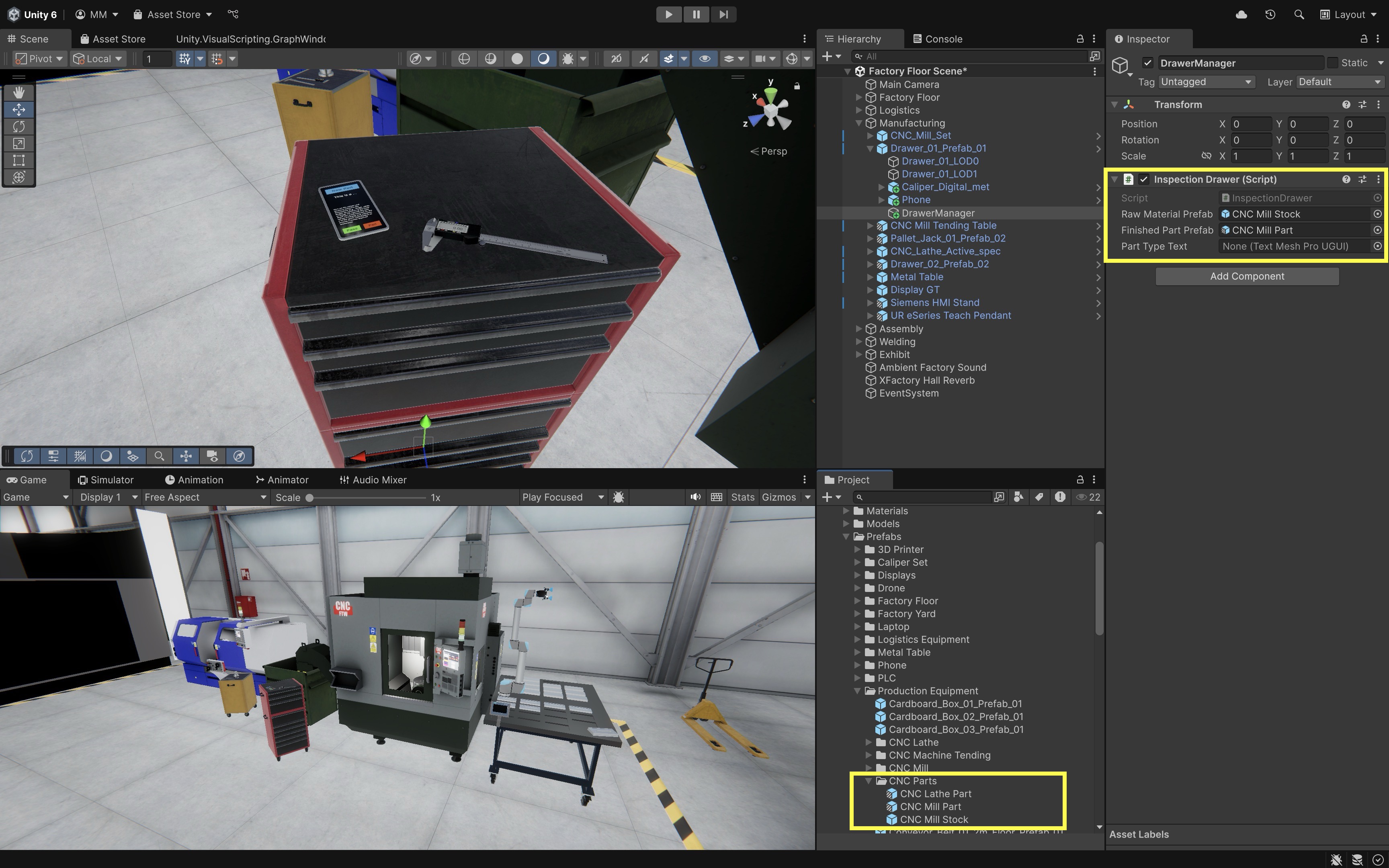

2. Assign Prefabs to the Script:
   • Select DrawerManager in the Hierarchy.
   • Drag and drop the CNC Mill Stock prefab from the Project window, Assets > XFactory > Prefabs > Production Equipment > CNC Parts into the Raw Material Prefab field. Make sure the prefab’s Tag is set to Raw Material.
   • Drag and drop the CNC Mill Part prefab from the Project window, Assets > XFactory > Prefabs > Production Equipment > CNC Parts into the Finished Part Prefab field. Make sure the prefab’s Tag is set to Finished Part.

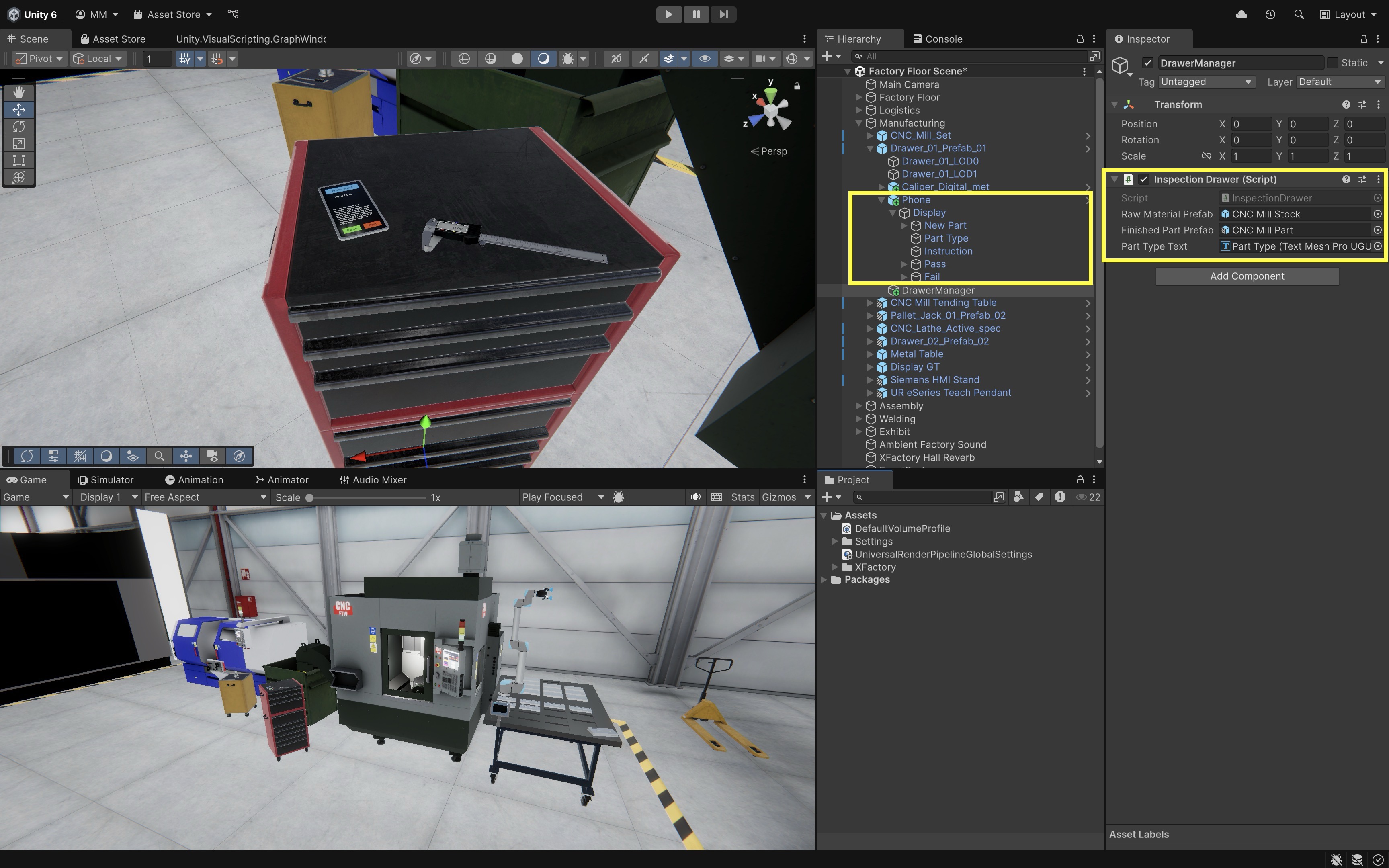

3. Assign the UI Text for Part Type:
   • Locate the TextMeshProUGUI text object under Phone/Display/Part Type.
   • Drag this object into the Part Type Text field of the InspectionDrawer.cs script on DrawerManager.

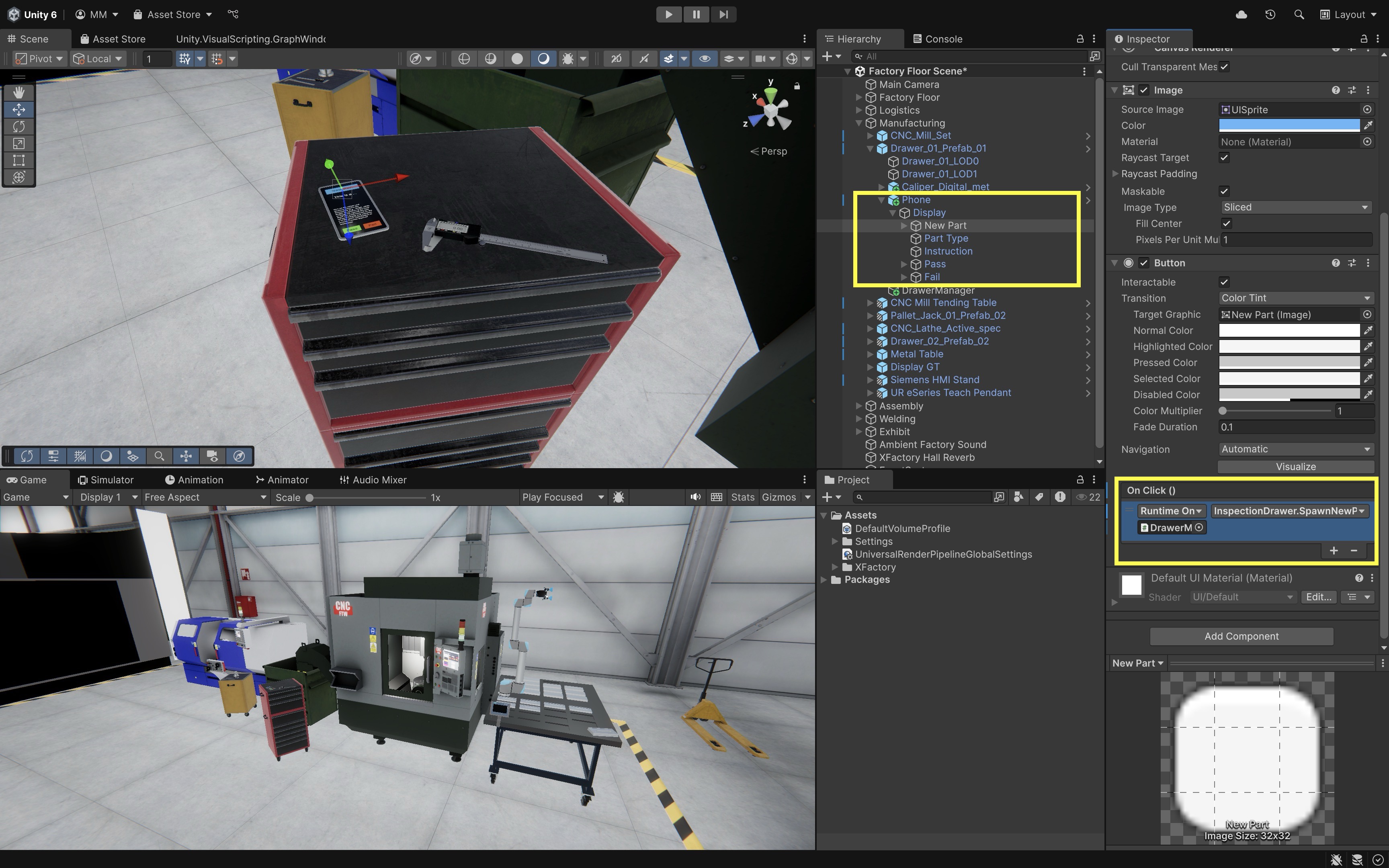

4. Connect Phone Button Events:
   • Select the New Part button in the Hierarchy.
   • In the Button (Script) component, click the + in the On Click() section.
   • Drag DrawerManager into the object field and select InspectionDrawer -> SpawnNewPart() from the dropdown.
   • Repeat this for Pass and Fail buttons, assigning them to RemoveCurrentPart().

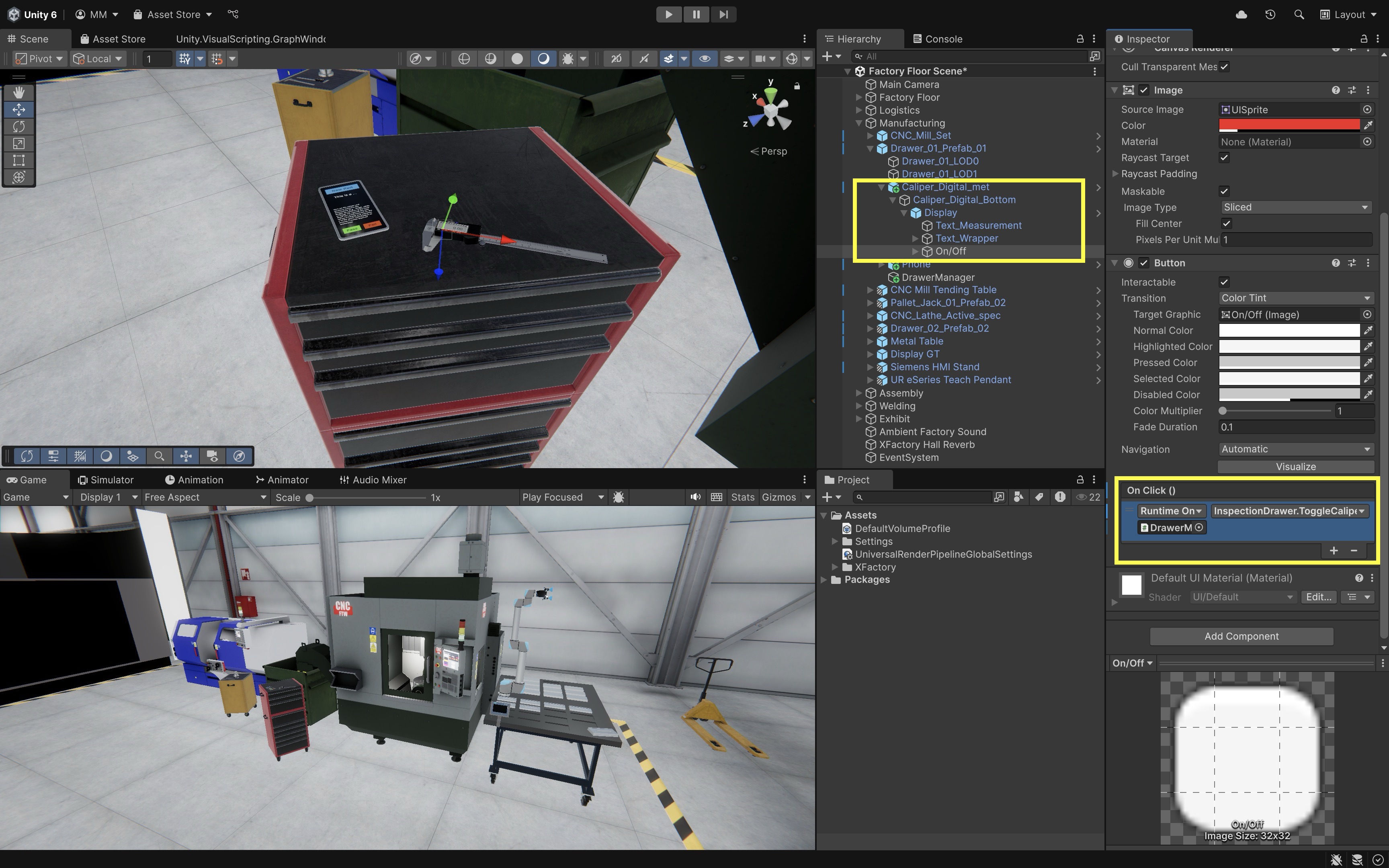

5. Connect the Caliper On/Off Button:
   • Select the On/Off button under the caliper.
   • In the On Click() section, add a new event.
   • Drag DrawerManager into the object field and assign it to DrawerInteraction -> ToggleCaliperDisplay().

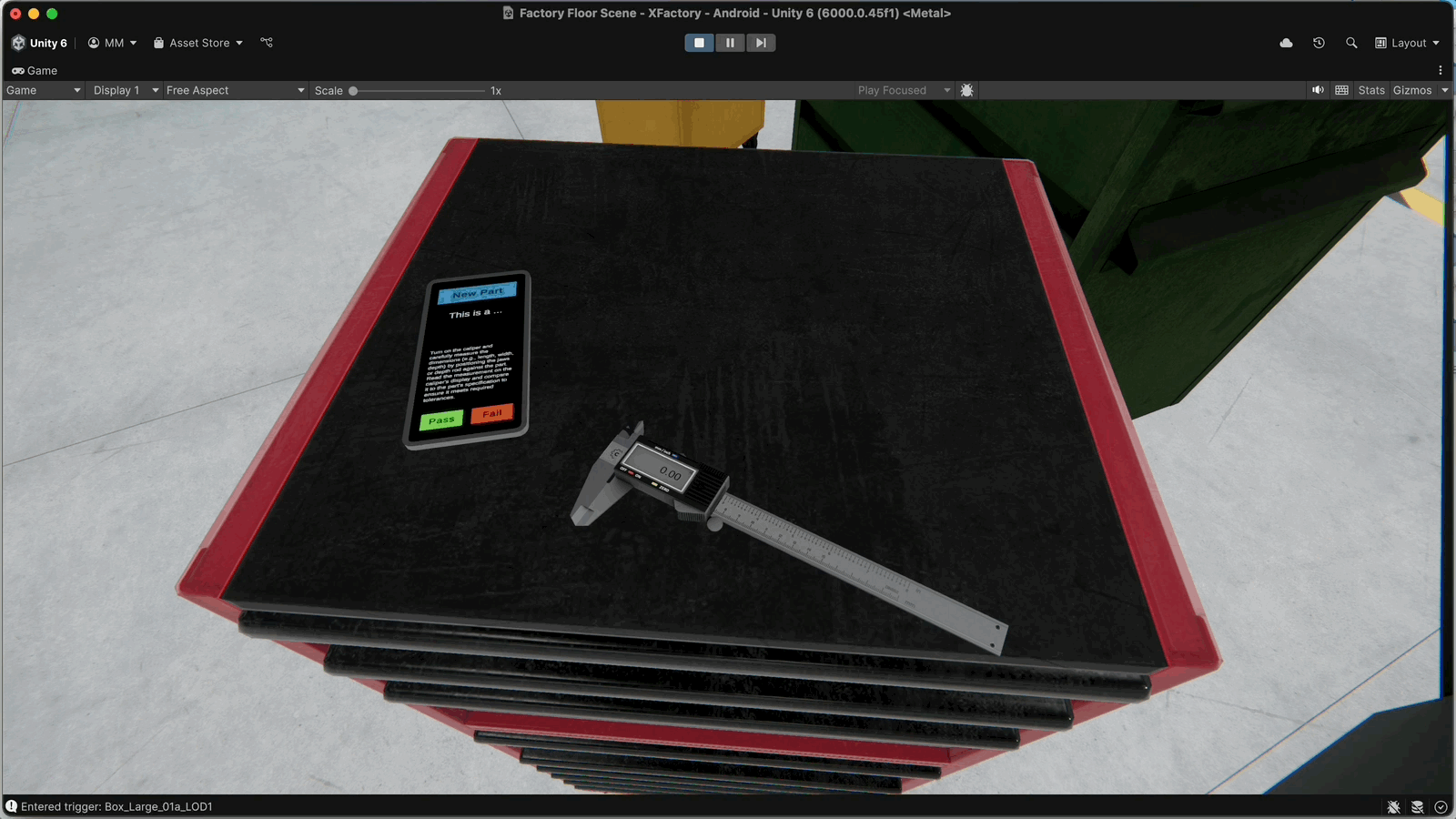

6. Test the Scene:
   • Enter Play mode.
   • Press New Part to spawn a random part in the drawer.
   • Press Pass or Fail to remove the part.
   • Press the On/Off button on the caliper to toggle the digital display. You may have noticed that the on/off button turns off the caliper’s display but doesn’t turn it back on. Can you explain the bug?



Component Methods

Components add functionality to GameObjects and are a core part of Unity’s component-based architecture. Whether you are retrieving a single component, finding one among children or parents, or invoking methods across multiple components, these methods enable a modular and flexible design approach. Key methods to work with components include:

• GetComponent<T>(): Retrieves a component of type T that is attached to the same GameObject. For example, Rigidbody rb = currentPart.GetComponent<Rigidbody>(); accesses the physics component on the newly spawned part in the example above.

• GetComponentInChildren<T>(): Searches for a component of type T on the GameObject or any of its child objects. For example, TextMeshProUGUI displayText = phoneDisplay.GetComponentInChildren<TextMeshProUGUI>(); finds the part type text under the phone’s display.

• GetComponents<T>(): Retrieves all components of type T attached to the GameObject, returning an array. For example, AudioSource[] alerts = phone.GetComponents<AudioSource>(); collects all sound sources from the phone device for control or diagnostics.

• GetComponentInParent<T>(): Searches the GameObject’s parent hierarchy for a component of type T. For example, DrawerInteraction manager = GetComponentInParent<DrawerInteraction>(); accesses the logic controller from a UI button nested deep in the phone’s hierarchy.

Example: Let’s verify key components attached to drawer-related objects in the XFactory scene, such as parts, the phone, and UI elements. The following script checks for a Rigidbody, reads text from the phone’s display, counts AudioSource components, and locates the main drawer manager script.

using UnityEngine;
using TMPro;

public class ComponentChecker : MonoBehaviour
{
    void Start()
    {
        // Get Rigidbody on the current part
        Rigidbody rb = GetComponent<Rigidbody>();
        if (rb != null)
        {
            Debug.Log("Rigidbody found on part.");
        }

        // Find the TextMeshPro component in the phone display
        TextMeshProUGUI displayText = GetComponentInChildren<TextMeshProUGUI>();
        if (displayText != null)
        {
            Debug.Log("Found text component: " + displayText.text);
        }

        // Get all audio sources on the phone
        AudioSource[] audioSources = GetComponents<AudioSource>();
        Debug.Log("Number of audio sources: " + audioSources.Length);

        // Find the InspectionDrawer script in the parent
        InspectionDrawer manager = GetComponentInParent<InspectionDrawer>();
        if (manager != null)
        {
            Debug.Log("Connected to InspectionDrawer script.");
        }
    }
}

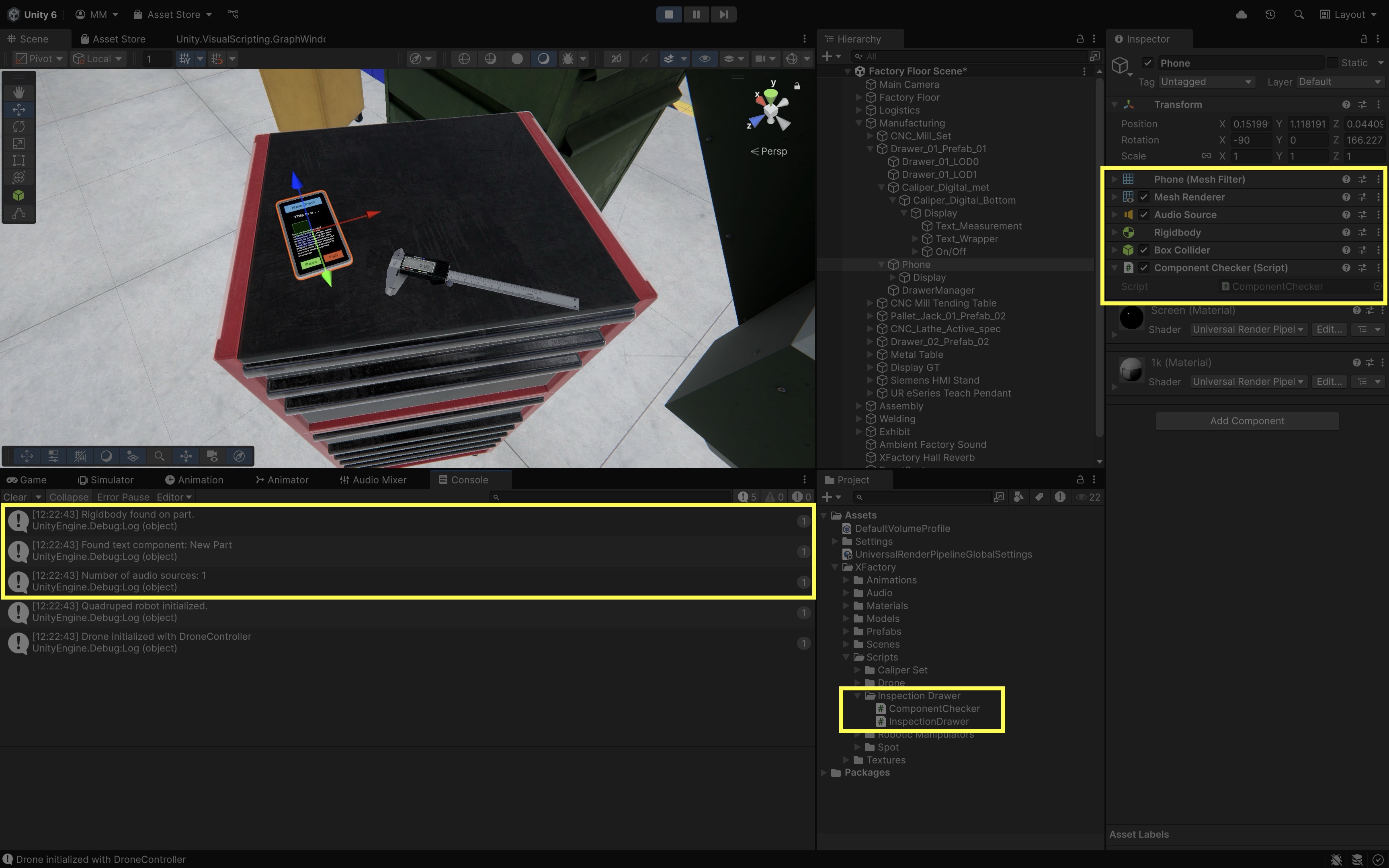

1. Attach the Script:
   • Create or select a GameObject involved in the drawer interaction (e.g., Phone).
   • In the Inspector, click Add Component and attach the ComponentChecker.cs script.
2. Run and Observe:
   • Enter Play mode in Unity.
   • Watch the Console for log messages confirming which components were found and accessed correctly.



---

UnityEngine.Audio

The UnityEngine.Audio namespace is designed to manage audio features within Unity. It provides classes and methods to control playback, mixing, and overall audio management in your projects.

Audio Source

The AudioSource class is a component that plays back audio clips in your scene. It controls the audio playback through various methods, enabling you to start, pause, and stop sounds. This component is essential for integrating sound effects, music, and voice-overs into your game or simulation. Important Audio Source methods include:

• Play(): This method initiates the playback of the assigned AudioResource. When called, it starts playing the audio from the beginning (or resumes if the audio was previously paused) on the AudioSource component. Use Play() when you want to start sound effects or background music immediately, such as when a game begins or when an event occurs.

• Pause(): This method temporarily halts the playback of the assigned AudioResource. However, it retains the current position in the audio clip so that playback can resume from the same point. Use Pause() when you want to temporarily interrupt the audio—for example, when pausing the game—so that it can be resumed later without restarting the clip.

• Stop(): This method completely halts the audio playback and resets the playback position to the beginning of the AudioResource. This is useful when you want to end the sound entirely or prepare the AudioSource for a new clip. Use Stop() when you want to immediately cease audio playback and ensure that it restarts from the beginning the next time you call Play().

Example: The script below controls the CNC machine using ON and OFF buttons on the HMI mounted to the control panel (CNC_Control_Panel). When the ON button is pressed, the AudioSource on the CNC_Mill_Set GameObject plays the machine sound, simulating the machine being turned on. Pressing OFF stops the machine (i.e., the sound).

using UnityEngine;

public class CNCControlPanel : MonoBehaviour
{
    // Assign the AudioSource from CNC_Mill_Set in Inspector
    public AudioSource cncAudio;

    // Called when "On" button is pressed
    public void TurnOnCNC()
    {
        if (cncAudio != null &&
            !cncAudio.isPlaying)
        {
            cncAudio.Play();
            Debug.Log("CNC machine started.");
        }
    }

    // Called when "Off" button is pressed
    public void TurnOffCNC()
    {
        if (cncAudio != null &&
            cncAudio.isPlaying)
        {
            cncAudio.Stop();
            Debug.Log("CNC machine stopped.");
        }
    }
}

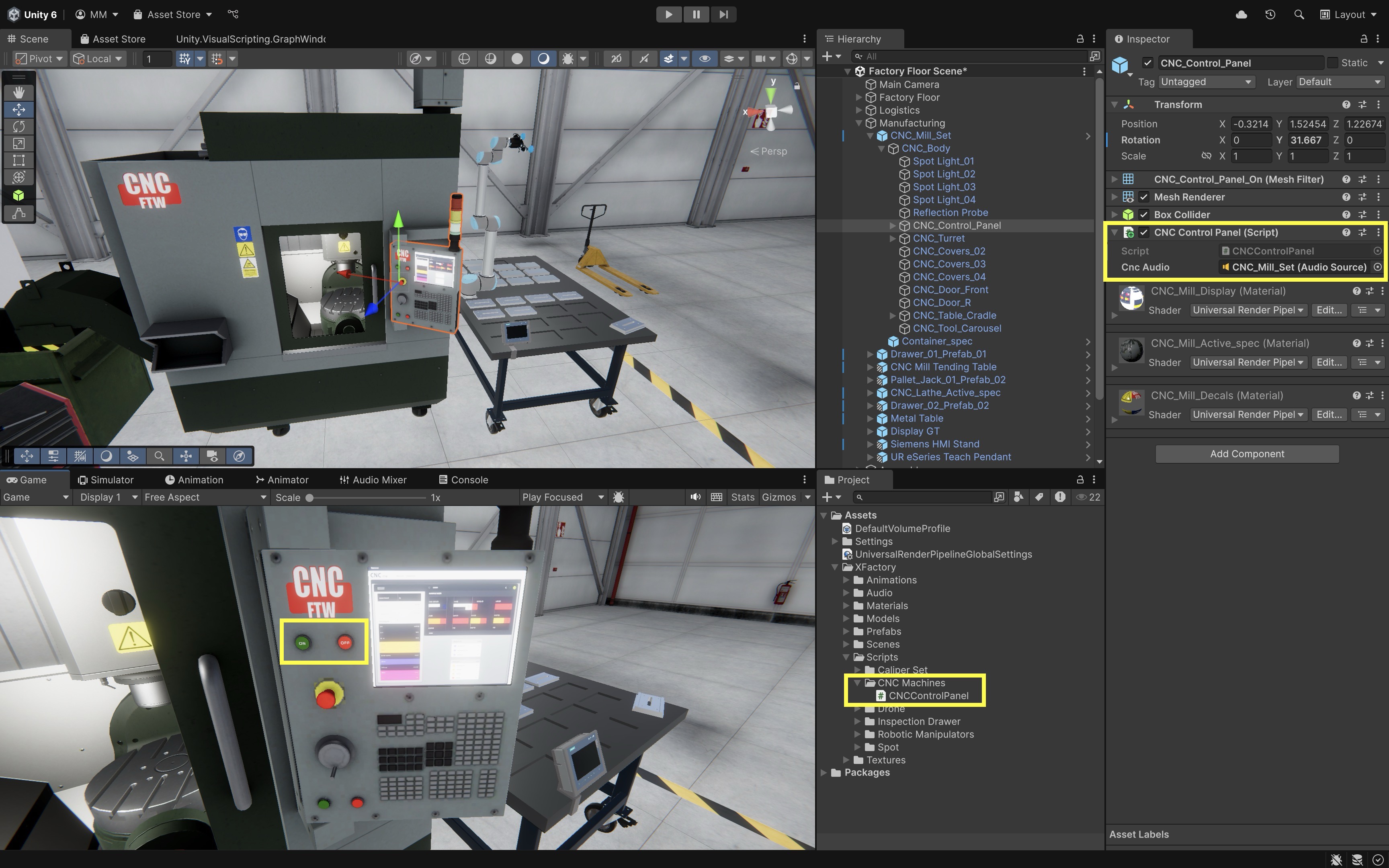

1. Attach the Script:
   • Select the CNC_Control_Panel GameObject in the hierarchy.
   • Click Add Component and attach the CNCControlPanel script.
2. Assign the AudioSource:
   • In the Inspector for CNC_Control_Panel, locate the cncAudio field in the script.
   • Drag the CNC_Mill_Set GameObject (which contains the AudioSource) into this field.

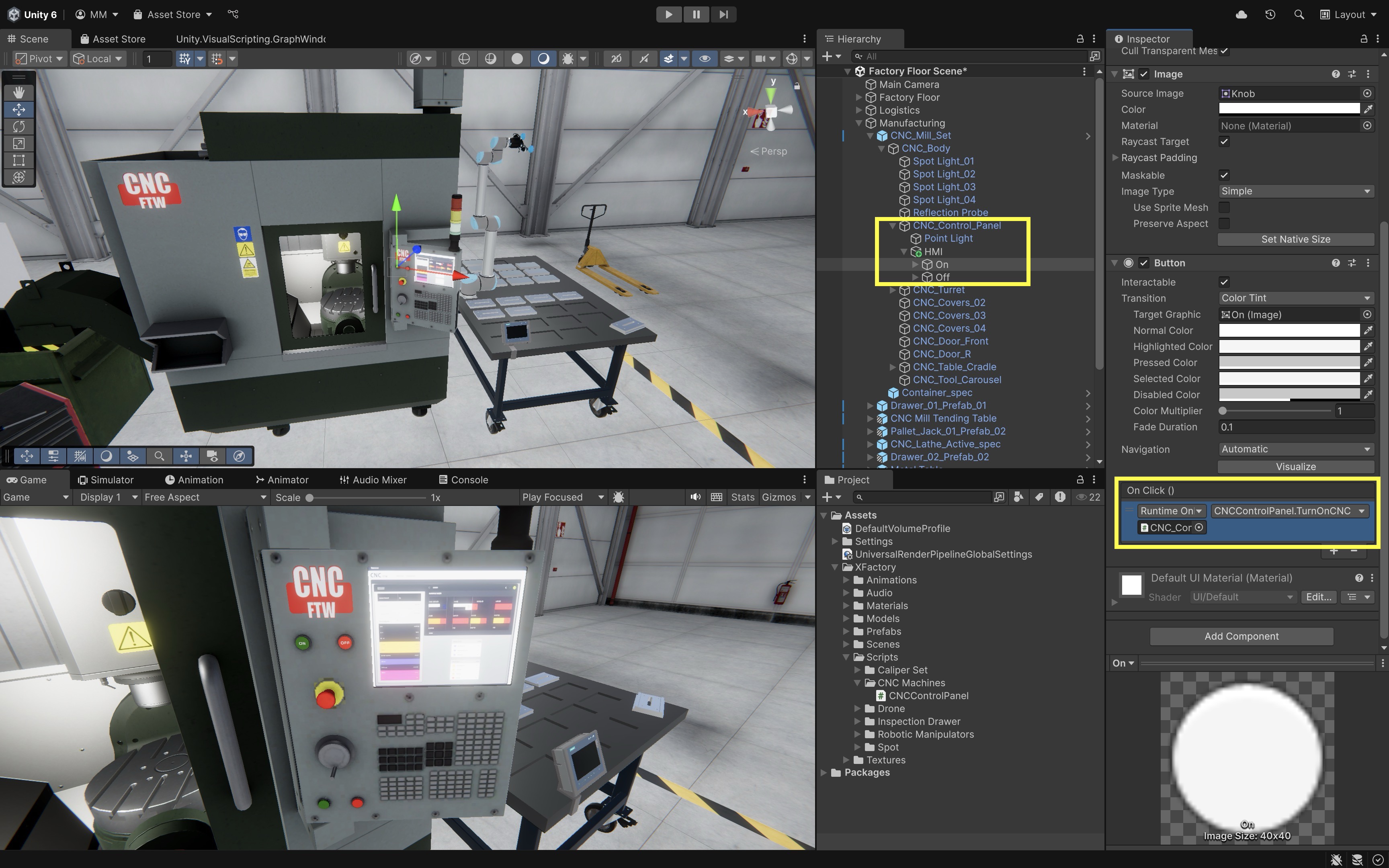

3. Wire Up the Buttons:
   • In the Hierarchy, expand CNC_Mill_Set > CNC_Body > CNC_Control_Panel > HMI (Canvas).
   • Select the ON button.
   • In the Inspector, under the Button (Script) component, find the OnClick() event list.
   • Click the + button to add a new event.
   • Drag the CNC_Control_Panel into the object field.
   • From the dropdown, choose CNCControlPanel → TurnOnCNC().
   • Repeat the same steps for the OFF button, but assign TurnOffCNC() instead.



4. Test the Setup:
   • Enter Play mode.
   • Click the ON button to hear the machine startup sound.
   • Click the OFF button to stop the sound.

AudioResource

AudioResource (previously known as AudioClip in older versions of Unity) is used to store imported audio data, such as machine sounds, operational alerts, ambient noise, or voice instructions. As of Unity 6, AudioResource better reflects its role as a managed and reusable audio asset across different parts of a project. In the CNC machine control panel example above, an AudioResource is assigned to an AudioSource attached to the CNC_Mill_Set. Playback is triggered by ON/OFF buttons in the HMI, allowing the simulation to respond with realistic feedback when machinery is toggled. In XR engineering applications, AudioResource is often used for simulating machine sounds or alarms in training environments, giving auditory feedback for UI interactions (e.g., button clicks, confirmation tones), or adding realism to immersive simulations through ambient background sounds. Important considerations:

• Storage: Holds waveform data (e.g., WAV, MP3, Ogg) used at runtime. The asset is preloaded or streamed depending on performance needs.
• Usage: Assigned to an AudioSource, which is then attached to a scene object. Playback is controlled by scripting, animation events, or user interaction (e.g., XR controller input or UI triggers).
• Configuration: Playback options such as volume, pitch, spatialization, and looping are configured via the AudioSource. Unity also supports 3D audio spatialization for immersive sound positioning in XR.

By separating sound assets (AudioResource) from playback logic (AudioSource), Unity enables a flexible and modular approach to integrating audio into interactive and reactive XR systems.

---

UnityEngine.UI

The UnityEngine.UI namespace provides a robust framework for building and managing user interfaces in Unity. It contains components that let you design interactive and visually engaging UIs for games and applications. With these tools, you can create text displays, buttons, sliders, images, toggles, and more. This namespace is essential for any project that requires user interaction, as it simplifies the process of connecting UI elements with your game logic. Key UI components include Text, Button, Image, and Toggle.

Text

The Text component is used for displaying and updating text on the screen. It is a fundamental UI element for showing instructions, scores, messages, or any information that the user needs to read. Important properties include:

• text: Property to get or set the displayed string.
• color: Property to change the text color.
• fontSize: Property to adjust the size of the text.

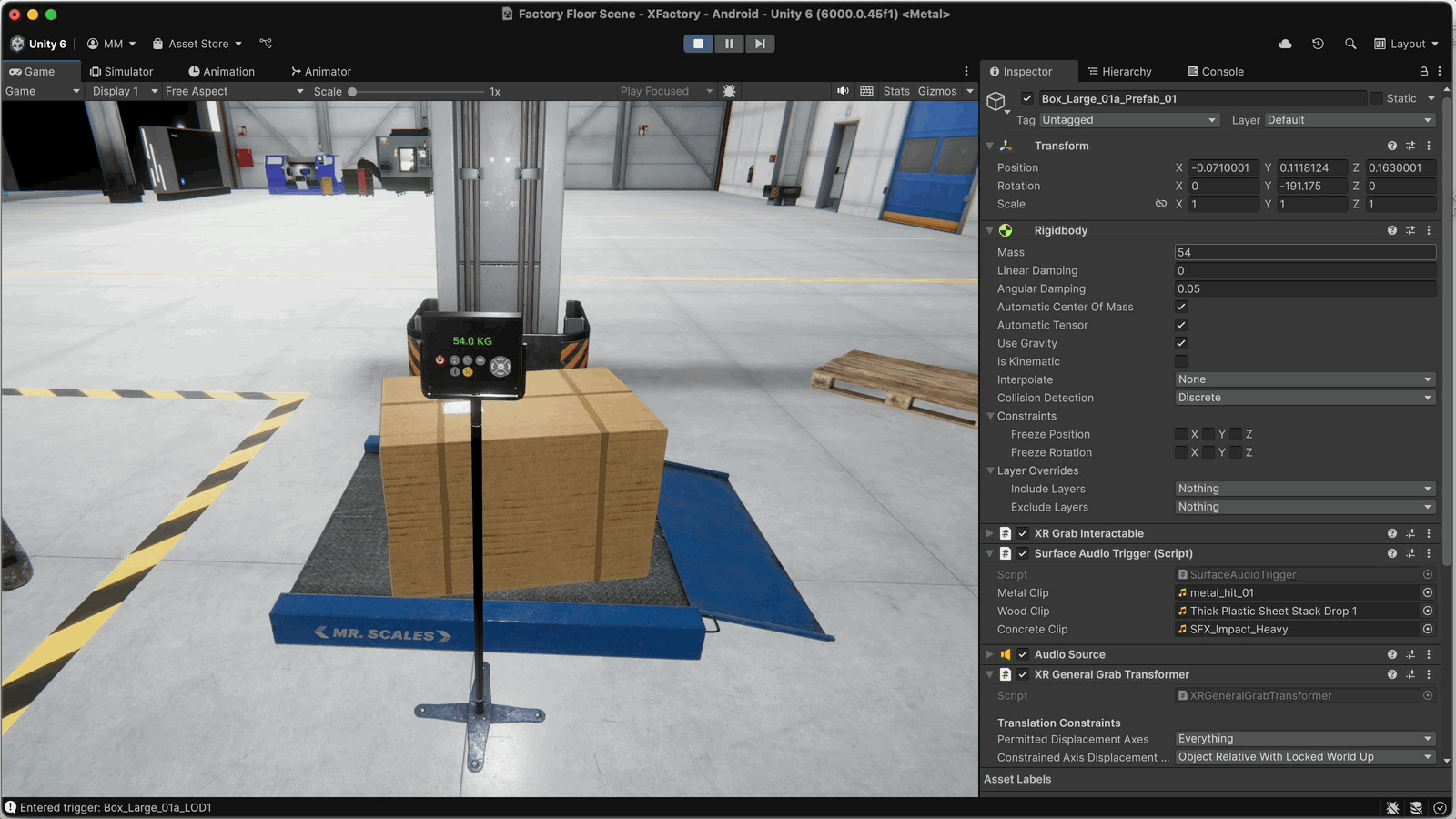

Example: Using Text properties, let’s display the real-time weight of a box on an industrial scale. If the weight exceeds 50 KG, the text turns red to signal an overload condition.

using UnityEngine;
using TMPro;

public class ScaleWeightDisplay : MonoBehaviour
{
    // Assign Box_Large_01a in Inspector
    public Rigidbody box;

    // Assign the Display text under HMI Canvas
    public TextMeshProUGUI displayText;

    public float warningThreshold = 50f;

    void Update()
    {
        if (box != null &&
            displayText != null)
        {
            // Calculate weight using mass and gravity
            float weight = box.mass;

            displayText.text =
                weight.ToString("00.00") + " KG";

            // Change color if weight exceeds threshold
            if (weight > warningThreshold)
            {
                displayText.color = Color.red;
            }
            else
            {
                displayText.color = Color.green;
            }
        }
    }
}

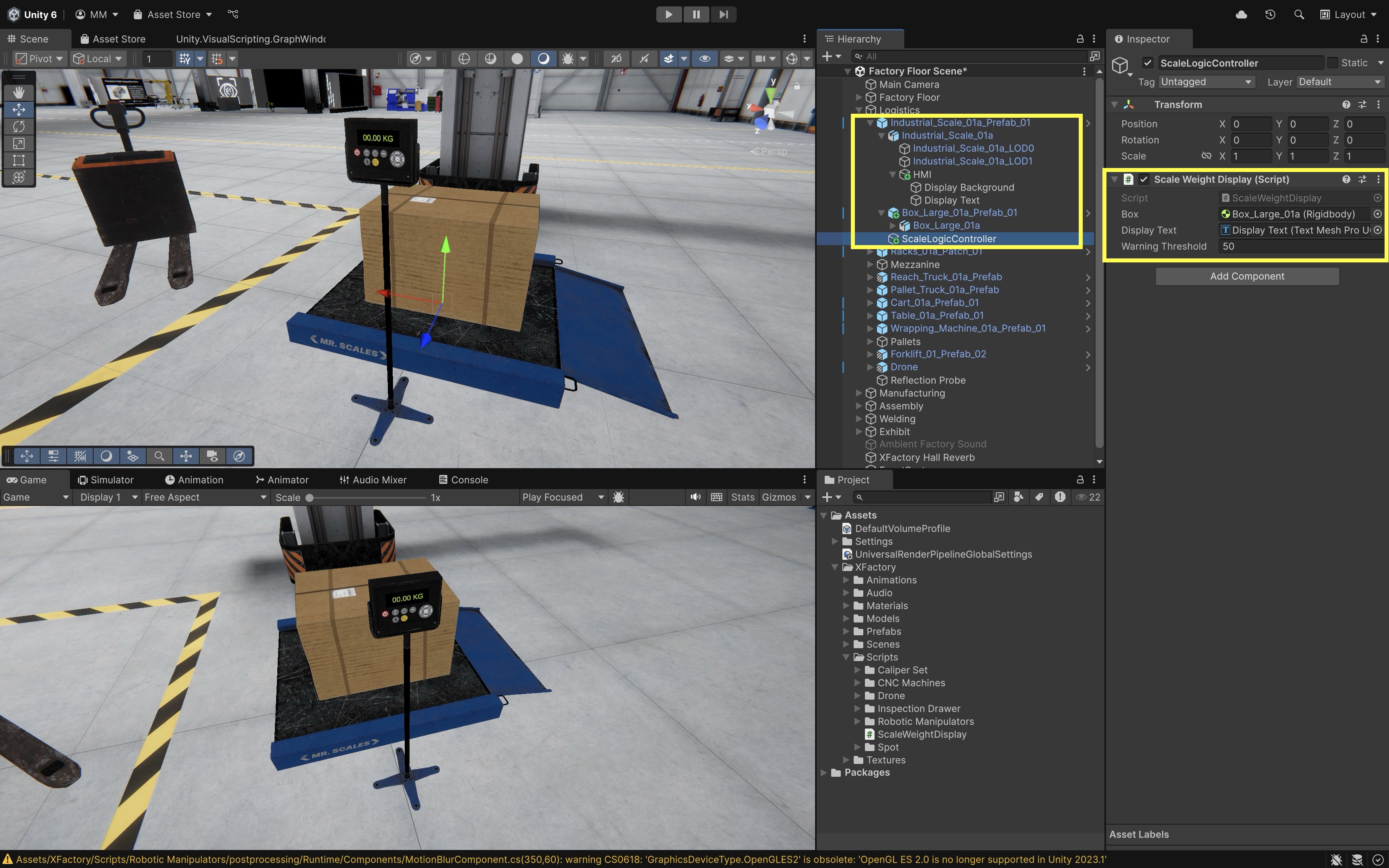

1. Attach the Script:
   • Create or select a logic controller under Industrial_Scale_01a (e.g., an empty GameObject named ScaleLogicController) or use the GameObject itself.
   • Add the ScaleWeightDisplay script to that object.
2. Assign References in Inspector:
   • Drag the Box_Large_01a GameObject (with a Rigidbody) into the box field.
   • Drag the TextMeshProUGUI Display Text object (under the HMI Canvas of the scale) into the displayText field.
   • (Optional) Set the warningThreshold field in the Inspector to define the weight (in KG) that triggers a red warning color (default is 50 KG).



3. Test the Setup:
   • Enter Play mode.
   • In the Inspector, modify the mass value of the box’s Rigidbody.
   • Observe the Display text updating in real time and changing color to red when the weight exceeds the threshold (e.g., 50 KG).



Button

The Button component is used for handling user clicks. It allows you to assign functions to be called when the button is pressed. The most important event related to this component is onClick to which you can add listeners using AddListener().

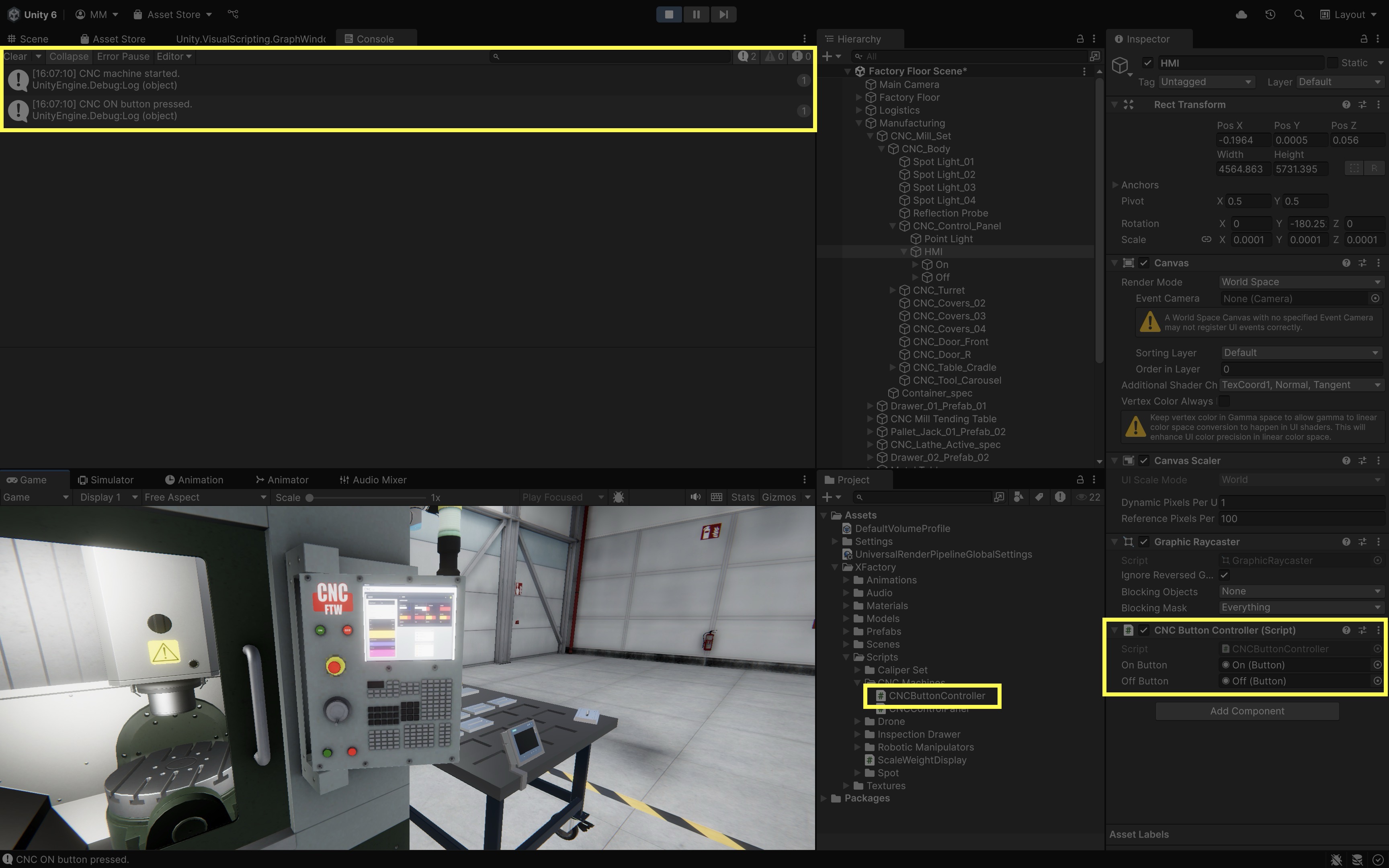

Example: Let’s use Unity’s Button.onClick.AddListener() to handle user input via the HMI panel on the CNC machine, so that the ON and OFF buttons on the HMI log messages when pressed. This mirrors the earlier example where these buttons were wired to play and stop the CNC machine’s sound via an AudioSource on the CNC_Mill_Set. Attach the following script to the HMI GameObject in the Hierarchy. Clicking the ON or OFF button on the CNC machine’s HMI will trigger a debug message in the Console confirming the button press.

using UnityEngine;
using UnityEngine.UI;

public class CNCButtonController : MonoBehaviour
{
    // Assign in Inspector (HMI On button)
    public Button onButton;

    // Assign in Inspector (HMI Off button)
    public Button offButton;

    void Start()
    {
        // Register click events for both buttons
        onButton.onClick.AddListener(
            HandleCNCOn
        );

        offButton.onClick.AddListener(
            HandleCNCOff
        );
    }

    void HandleCNCOn()
    {
        Debug.Log("CNC ON button pressed.");
        // Add logic to start CNC here
    }

    void HandleCNCOff()
    {
        Debug.Log("CNC OFF button pressed.");
        // Add logic to stop CNC here
    }
}


The Image component is used for displaying images (sprites) in the UI. It can be used for icons, backgrounds, or any other visual element. Important image properties include:

• sprite: Property to get or set the current sprite.
• color: Property to modify the tint of the image.

Example: This example demonstrates how to create a simple slideshow of engine diagrams on the Interactive Engine Diagram UI element in the Display GT monitor at the assembly station. It uses the Image.sprite property to cycle through a list of three sprites and the Image.color property to ensure the image is fully visible. A UI button with a > icon is placed below the image, and each click updates the displayed diagram, mimicking an interactive digital manual or display panel.

using UnityEngine;
using UnityEngine.UI;

public class EngineDiagramSlideshow : MonoBehaviour
{
    // The single Image UI element
    public Image diagramImage;

    // Array of slides as sprites
    public Sprite[] diagramSprites;

    private int currentIndex = 0;

    void Start()
    {
        ShowSlide(currentIndex);
    }

    public void ShowNextSlide()
    {
        currentIndex = (currentIndex + 1) %
                       diagramSprites.Length;

        ShowSlide(currentIndex);
    }

    private void ShowSlide(int index)
    {
        if (diagramSprites.Length == 0 ||
            diagramImage == null)
        {
            return;
        }

        diagramImage.sprite = diagramSprites[index];

        // Ensure the image is fully visible
        // (in case it was tinted or transparent)
        diagramImage.color = Color.white;
    }
}

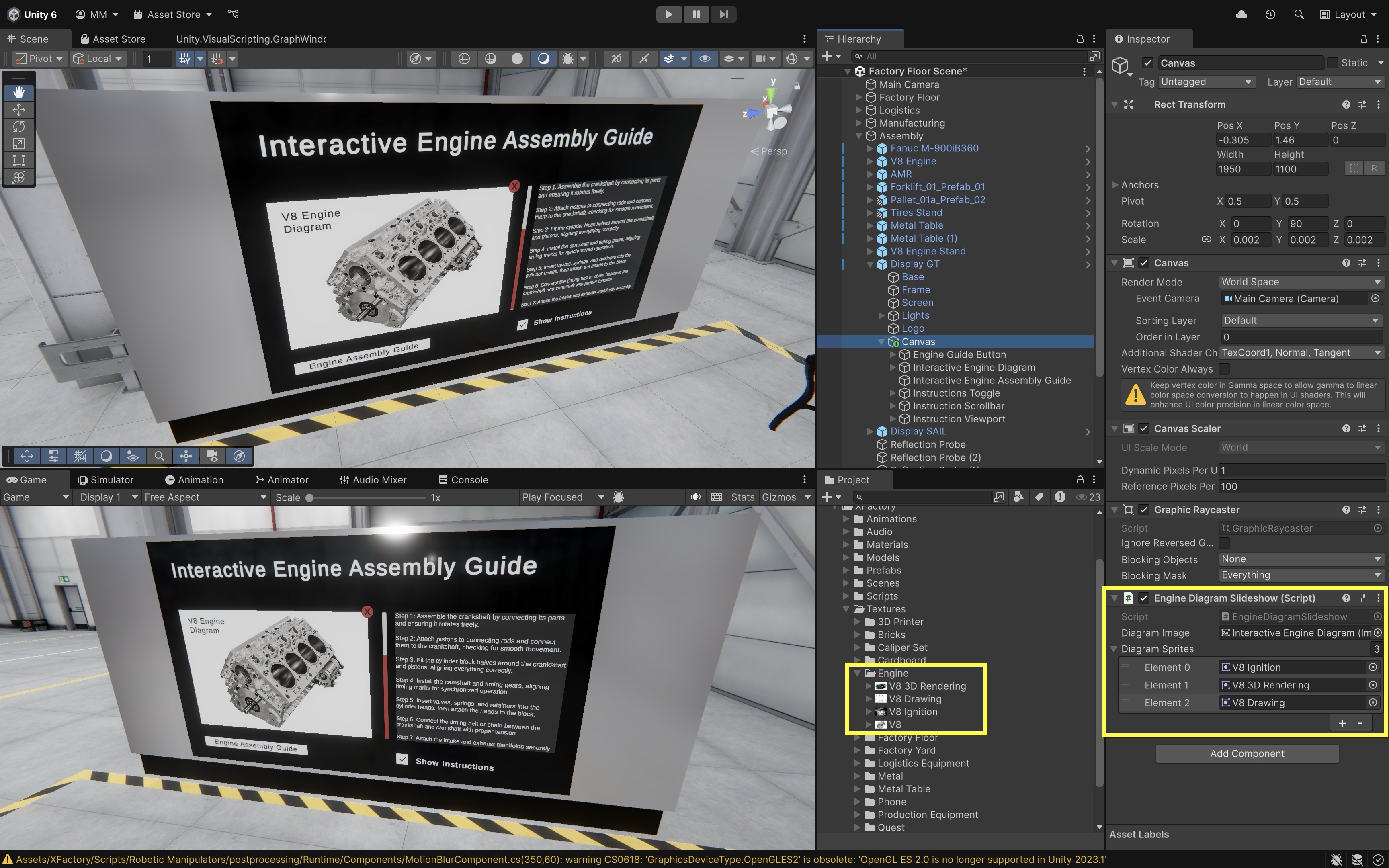

1. Attach the Script:
   • Add the EngineDiagramSlideshow script to the Canvas GameObject under Display GT.
   • Drag the Interactive Engine Diagram UI Image into the diagramImage field.
   • Add the three diagram slides (as Sprite assets) to the diagramSprites array in the Inspector.

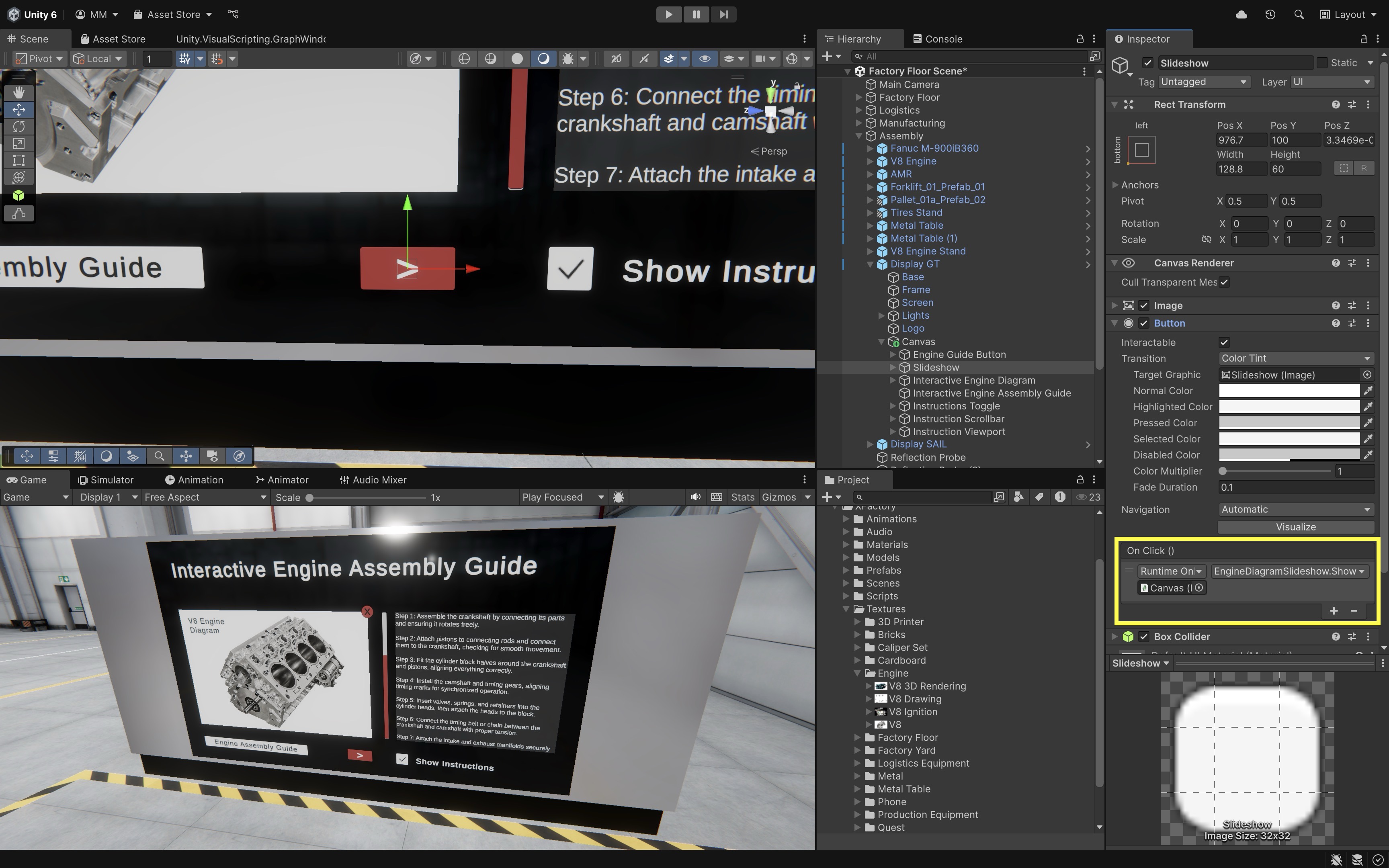

2. Set Up the Button:
   • Place a UI Button (with a > icon) under the image. Name it Slideshow or something similar.
   • In the button’s OnClick() list, add the Canvas or GameObject with the script.
   • Choose EngineDiagramSlideshow → ShowNextSlide().

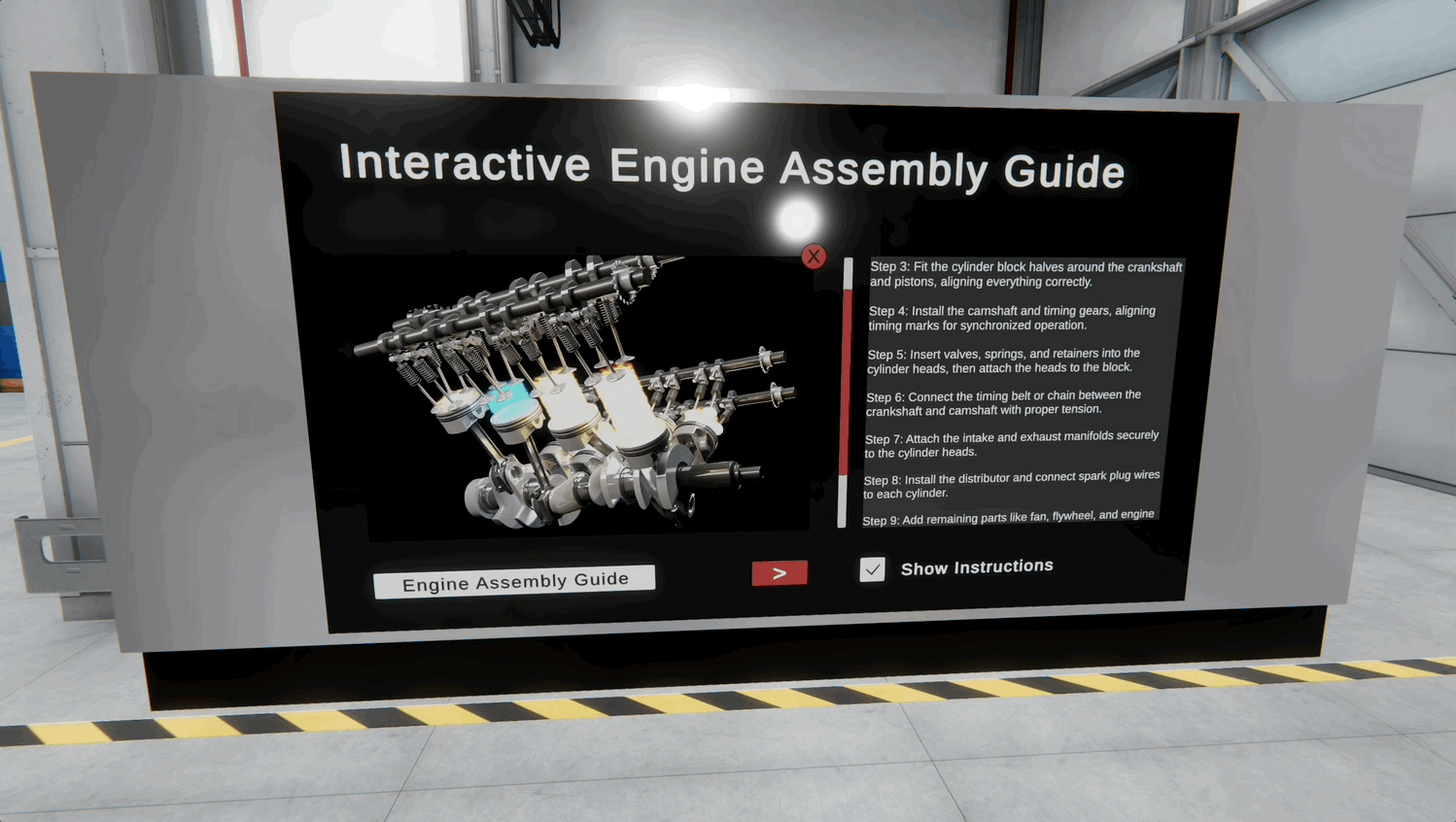

3. Preview the Result:
   • Enter Play mode.
   • Click the button to cycle through the slideshow sprites.



Toggle

The Toggle component is a checkbox-like element that allows users to enable or disable options. It is useful for settings and options menus. Important properties include:

• isOn: Property indicating whether the toggle is on (true) or off (false).
• onValueChanged: An event that gets triggered when the toggle state changes.

Example: This example demonstrates how to use the Toggle component’s isOn property and onValueChanged event to control the visibility of an instruction panel (Instruction Scrollbar) on the DisplayGT monitor in the assembly station. When the user interacts with the Instructions Toggle, the script shows or hides the scrollable panel and logs a message to the Console indicating the current state.

using UnityEngine;
using UnityEngine.UI;

public class InstructionToggleController : MonoBehaviour
{
    // Assign the "Instructions Toggle"
    public Toggle instructionsToggle;

    // Assign the "Instruction Scrollbar"
    public GameObject instructionPanel;

    void Start()
    {
        // Set initial visibility based on the toggle state
        instructionPanel.SetActive(
            instructionsToggle.isOn
        );

        // Add listener to handle toggle interaction
        instructionsToggle.onValueChanged
            .AddListener(delegate
        {
            instructionPanel.SetActive(
                instructionsToggle.isOn
            );

            // Log a message indicating current state
            if (instructionsToggle.isOn)
            {
                Debug.Log("Instructions panel shown.");
            }
            else
            {
                Debug.Log("Instructions panel hidden.");
            }
        });
    }
}

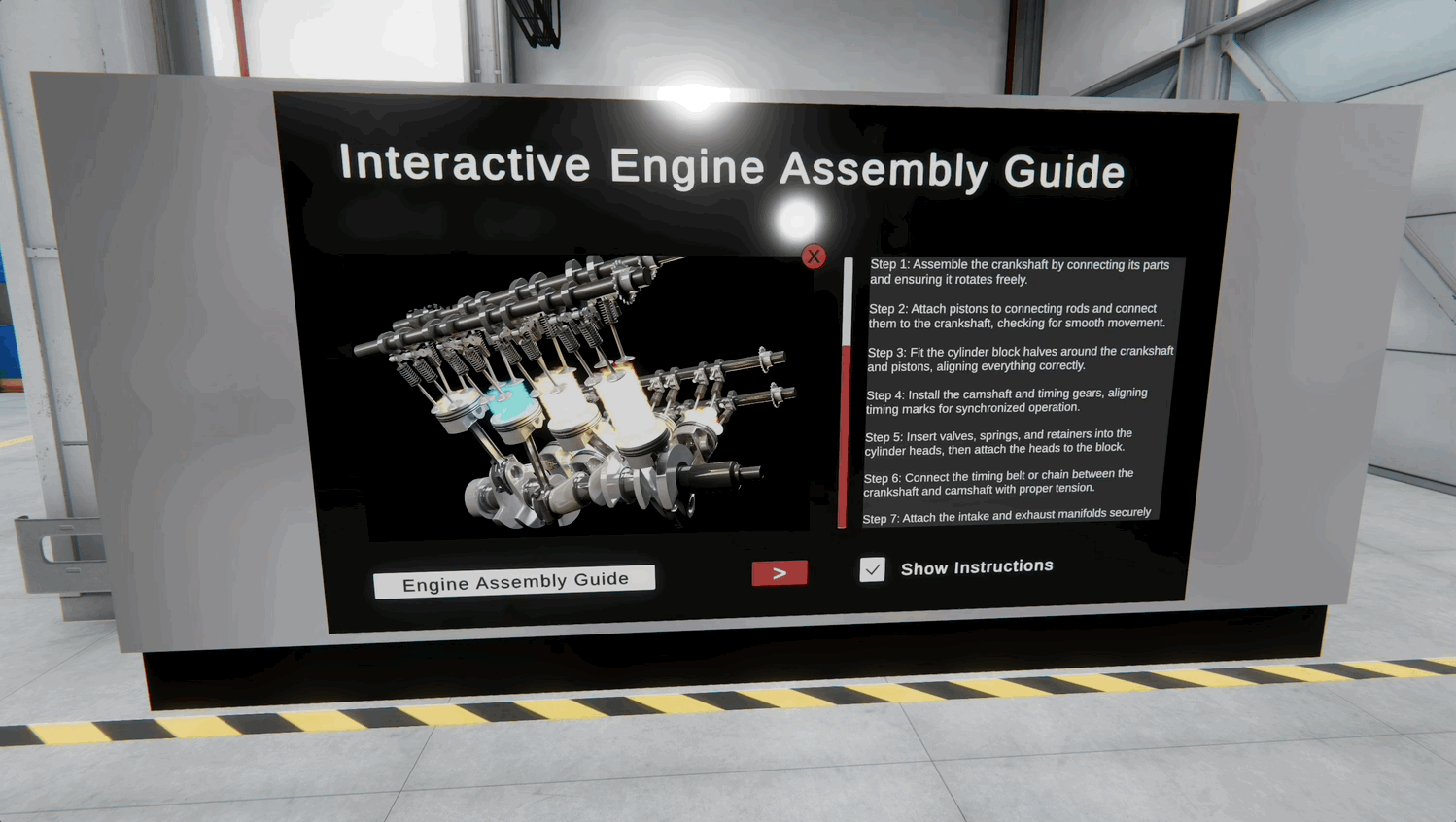

1. Attach the Script:
   • Add the InstructionToggleController script to the Canvas GameObject under DisplayGT (or any suitable UI controller object in that hierarchy).
   • Drag the Instructions Toggle (the UI Toggle element) into the instructionsToggle field.
   • Drag the Instruction Scrollbar (the scrollable text panel GameObject) into the instructionPanel field.
2. Configure Initial Visibility:
   • Ensure the Instruction Scrollbar is active or inactive in the scene based on your preferred default state.
   • The script will automatically sync its visibility with the toggle’s isOn state at runtime.
3. Test the Toggle:
   • Enter Play mode in Unity.
   • Click the toggle to show or hide the instruction panel.
   • Open the Console to see log messages confirming whether the instructions are shown or hidden.



---

UnityEngine.SceneManagement

The UnityEngine.SceneManagement namespace is essential for managing scenes in Unity. It provides developers with the tools needed to load, unload, and transition between different scenes. Scenes represent different levels, game states, or environments. Using these methods allows you to build fluid game experiences, such as level transitions, dynamic loading of game content, and asynchronous scene management for smoother performance. Key SceneManager methods include:

• LoadScene(): The SceneManager.LoadScene() method loads a new scene by name or index. This is commonly used to switch between levels or restart a game.

• UnloadSceneAsync(): The SceneManager.UnloadSceneAsync() method unloads a scene asynchronously, freeing up resources. This method is useful when you need to remove a scene without causing a frame rate drop or interruption.

• GetActiveScene(): The SceneManager.GetActiveScene() method returns the currently active scene. This is useful for obtaining scene-specific information, such as the scene name or build index.

• sceneLoaded (event): The SceneManager.sceneLoaded event is triggered once a scene has finished loading. It allows you to perform additional actions immediately after a scene transition, such as initializing game objects or setting up UI elements.

Example: Let’s trigger both loading and unloading the XFactory yard scene (exterior) by opening and closing a door in the XFactory using keyboard input. Pressing the O key gradually rotates the door open on the Y-axis from 0° to -120°. As soon as the door’s Y rotation dips below 0°, the Factory Yard Scene is loaded additively using SceneManager.LoadScene(). Pressing the C key closes the door by rotating it back to 0°, and once fully closed, the scene is unloaded using SceneManager.UnloadSceneAsync(). This simulates spatially-aware scene streaming, improving performance and immersion in large environments.

using UnityEngine;
using UnityEngine.SceneManagement;

public class FactoryYardLoader : MonoBehaviour
{
    public string exteriorSceneName =
        "Factory Yard Scene";

    public float rotationSpeed = 60f;

    private Quaternion openRotation;
    private Quaternion closedRotation;

    private bool opening = false;
    private bool closing = false;
    private bool sceneLoaded = false;

    void Start()
    {
        closedRotation = Quaternion.Euler(
            0f, 0f, 0f
        );

        openRotation = Quaternion.Euler(
            0f, -120f, 0f
        );
    }

    void Update()
    {
        if (Input.GetKeyDown(KeyCode.O))
            opening = true;

        if (Input.GetKeyDown(KeyCode.C))
            closing = true;

        if (opening)
        {
            transform.rotation = Quaternion.RotateTowards(
                transform.rotation,
                openRotation,
                rotationSpeed * Time.deltaTime
            );

            float yAngle = NormalizeAngle(
                transform.eulerAngles.y
            );

            if (!sceneLoaded && yAngle < 0f)
            {
                SceneManager.LoadScene(
                    exteriorSceneName,
                    LoadSceneMode.Additive
                );

                sceneLoaded = true;
                Debug.Log("Factory Yard Scene loaded.");
            }

            if (Quaternion.Angle(
                    transform.rotation,
                    openRotation
                ) < 0.1f)
            {
                opening = false;
            }
        }

        if (closing)
        {
            transform.rotation = Quaternion.RotateTowards(
                transform.rotation,
                closedRotation,
                rotationSpeed * Time.deltaTime
            );

            if (Quaternion.Angle(
                    transform.rotation,
                    closedRotation
                ) < 0.1f)
            {
                closing = false;

                // Unload the scene when the door fully closes
                if (sceneLoaded &&
                    SceneManager.GetSceneByName(
                        exteriorSceneName
                    ).isLoaded)
                {
                    SceneManager.UnloadSceneAsync(
                        exteriorSceneName
                    );

                    sceneLoaded = false;
                    Debug.Log("Factory Yard Scene unloaded.");
                }
            }
        }
    }

    float NormalizeAngle(float angle)
    {
        return (angle > 180f) ?
            angle - 360f :
            angle;
    }
}

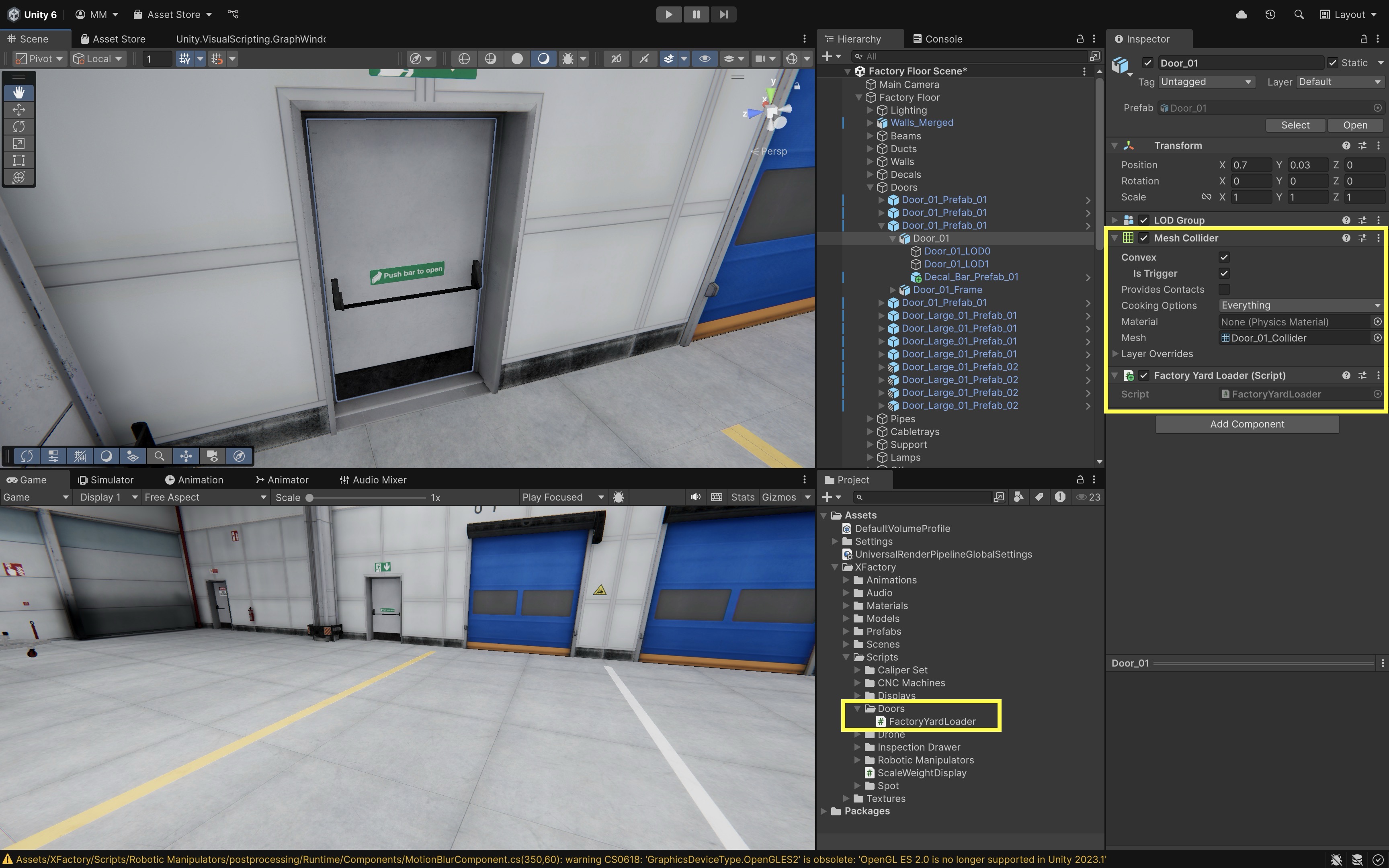

1. Attach the Script:
   • Add the FactoryDoorLoader script to the door GameObject (e.g., Door_01).
   • Ensure the door GameObject has a Collider component (it does not need to be a trigger).

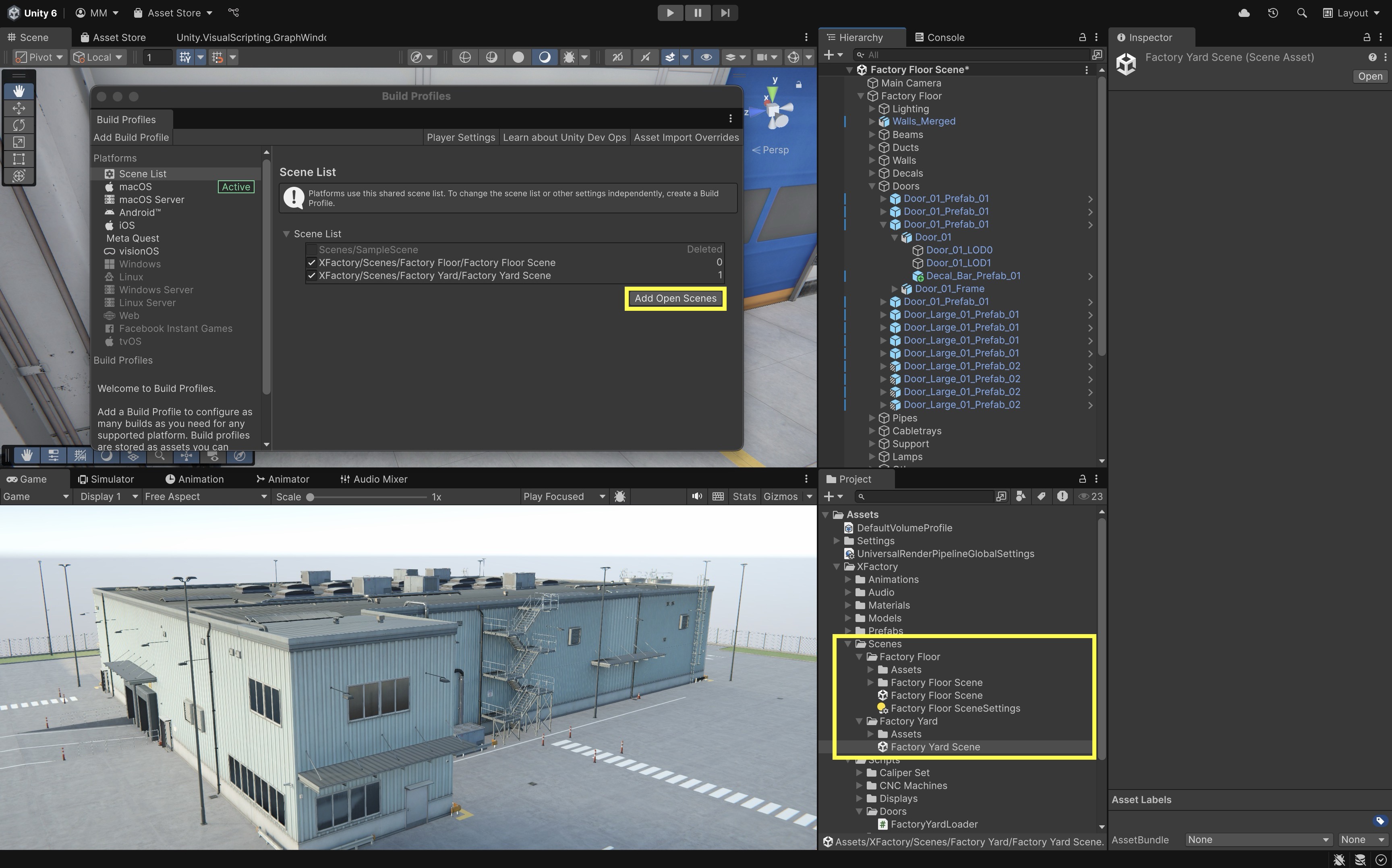

2. Configure Scene Reference:
   • In the script’s exteriorSceneName field, type the exact name of your scene asset (e.g., Factory Yard Scene).
   • Go to File > Build Profiles and open your active build profile.
   • In the profile’s Scene List, click Add Open Scene after additively opening the Factory Yard Scene in the Editor (right-click > Open Scene Additive).

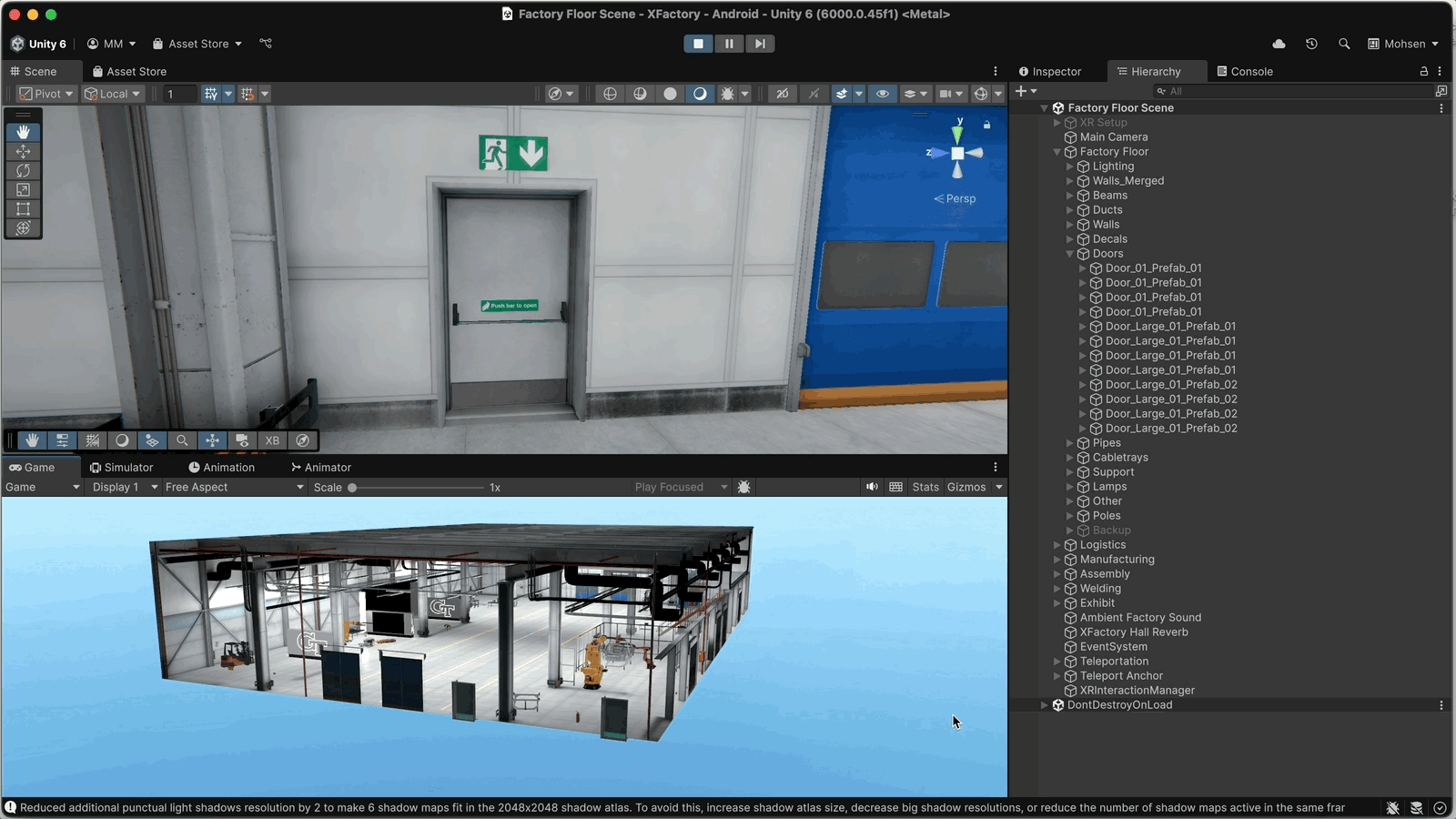

3. Testing in Play Mode:
   • Enter Play mode in the Unity Editor.
   • Press O to open the door. Once its Y rotation passes below 0°, the Factory Yard Scene loads additively.
   • Press C to close the door. Once it fully returns to 0°, the Factory Yard Scene is unloaded automatically.



---

UnityEngine.XR

Finally, let’s review the foundational namespaces in Unity that power XR development. The UnityEngine.XR namespace is Unity’s base-level XR API, giving you direct access to low-level XR device data, including tracking information, device presence, and positional data for VR/AR hardware. Even if you later use higher-level systems like XR Interaction Toolkit, understanding how Unity tracks hardware through this namespace helps you troubleshoot, extend, or fine-tune your XR experiences. It is especially useful in cases where raw tracking data is needed—like monitoring head position in safety-critical areas. Key components include:

• XRDevice: Provides basic information about the connected XR hardware (e.g., whether a headset is present). It is useful for checking hardware availability at runtime.
• InputTracking: Allows access to the position and rotation of XR input sources like the headset or controllers. You can track specific nodes (e.g., head, hands) in real time.
• XRNode: An enumeration that defines which part of the XR device you’re tracking (Head, LeftHand, RightHand, etc.).

UnityEngine.XR.Management

This namespace extends UnityEngine.XR by managing the lifecycle and configuration of XR subsystems through the XR Plugin Management system. It allows Unity to interface with different XR platforms such as OpenXR, Oculus, or Windows MR through a standardized plugin framework. Without this namespace, Unity wouldn’t know which XR runtime to launch or how to configure it. You will work with it when setting up your project to use OpenXR for both VR and AR platforms. It is essential for building cross-platform apps that automatically load the right XR environment at runtime. Key components include:

• XRGeneralSettings: Stores global XR configuration and determines how and when XR initializes during app startup.
• XRManagerSettings: Controls startup/shutdown of XR subsystems (e.g., input, rendering, tracking).
• XRLoader: Each XR plugin provides a loader that handles initializing that specific platform’s features.

UnityEngine.XR.Interaction.Toolkit

The XR Interaction Toolkit builds on UnityEngine.XR and XR.Management to offer a high-level, component-based framework for common VR interactions. It removes the need to code most input logic from scratch and offers prefab-ready systems for locomotion, grabbing, UI, and physics-based interaction. This namespace will be your primary toolset during the VR development module. It drastically reduces development time by abstracting away controller input logic and interaction mechanics, allowing you to focus on designing interactive scenes. It’s also extensible, so you can build custom behaviors atop a robust base. Key components include:

• XRController: Maps input from XR devices such as hand controllers.
• XRGrabInteractable: Enables objects to be picked up, moved, or manipulated using XR input.
• XRRayInteractor: Provides ray-based interaction, like a laser pointer, for UI or distant objects.
• XRInteractorLineVisual: Visually represents the ray or interaction line in VR scenes.

UnityEngine.XR.ARFoundation

AR Foundation extends Unity’s XR support to AR, abstracting the differences between ARKit (iOS), ARCore (Android), and platforms like Magic Leap. It builds on UnityEngine.XR by introducing AR-specific features like plane detection, light estimation, and anchors. This namespace will power your AR development module, enabling real-world spatial understanding and overlaying virtual content. It allows you to build cross-device AR experiences without writing platform-specific code, making your AR apps portable and future-ready. Key components include:

• ARSession: Manages the AR lifecycle, including reset and pause/resume behavior.
• ARPlaneManager: Detects and tracks real-world flat surfaces using device sensors and camera input.
• ARCameraManager: Accesses and controls camera features such as light estimation, focus modes, and exposure.

UnityEngine.XR.OpenXR

This namespace represents Unity’s implementation of the OpenXR standard, which aims to unify XR development across devices and vendors. It acts as the foundation behind XR Plugin Management when the OpenXR loader is selected. OpenXR allows you to write one XR application and deploy it across multiple platforms. It’s the most scalable way to support both Meta Quest (VR) and Magic Leap 2 or mobile (AR) with the same codebase. Understanding how OpenXR fits into Unity’s XR stack ensures you are ready to build long-lasting, portable, and maintainable XR apps. Key points to consider:

• OpenXR is a vendor-neutral standard supported by Meta, HTC, Microsoft, Magic Leap, and others.
• Most functionality is configured through the Unity Editor and XR Plugin Management, not through scripting in this namespace.
• It supports device-specific extensions for advanced features (e.g., hand tracking, eye tracking, passthrough) in a modular, future-proof way.

---

Key Takeaways

Namespaces in C# and Unity are essential for structuring XR projects into organized, conflict-free, and reusable modules, enabling smoother collaboration and scalability. Mastering Unity’s core namespaces—such as UnityEngine for fundamental classes and lifecycle methods, UnityEngine.Audio for sound management, UnityEngine.UI for interactive interfaces, UnityEngine.SceneManagement for scene transitions, and XR-related namespaces for VR/AR functionality—empowers developers to build modular, maintainable, and immersive experiences. By understanding how each namespace groups related functionality, you can streamline code organization, prevent naming collisions, and design interactive systems that are both robust and adaptable across different platforms.
